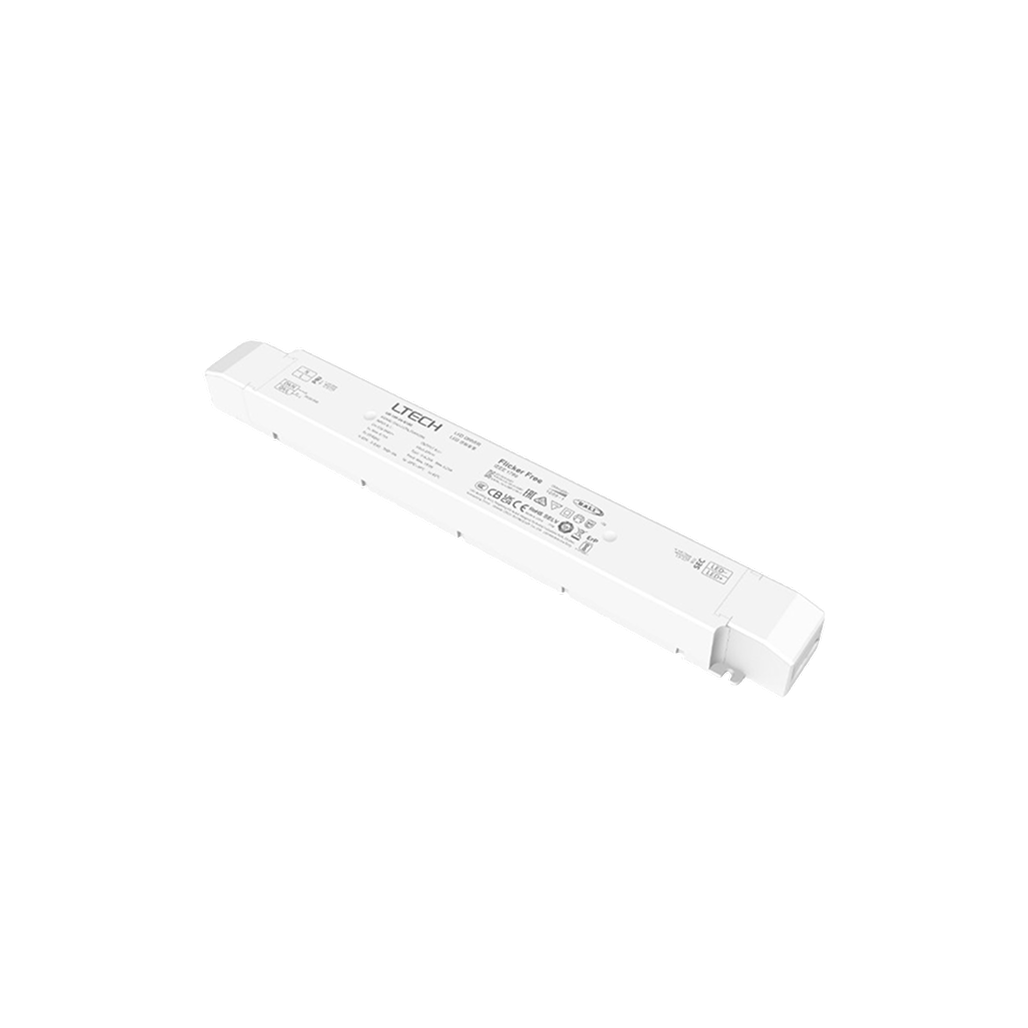

The LTECH 24V Constant Voltage Driver LM-150-24-G2D2
Features
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials
- Small size and light weight
- The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs
- 2 independently SELV constant voltage output channels
- DALI-2 DT6/DT8, DIM and colour temperature adjusting driver
- Constant power design, adjust different colour temperature to keep the same brightness
- Dimming range from 0-100%, LED start at 0.1% possible
- Colour temperature adjusting range: 1000K-10000K, default is 2700K-6500K
| IP Rating |
IP20 |
| Dimming Type |
DALI-2 DT6/DT8 or PUSH DIM or PWM |
| Dimming Range |
0% - 100% |
| CV/CC |
Constant Voltage |
| Input Voltage |
200V-240V |
| Output Voltage |
24V DC |
| Output Power |
150W |
| Product Dimensions (mm) |
L 352 x W 43 X H 30 |
| Weight (g) |
430 |
